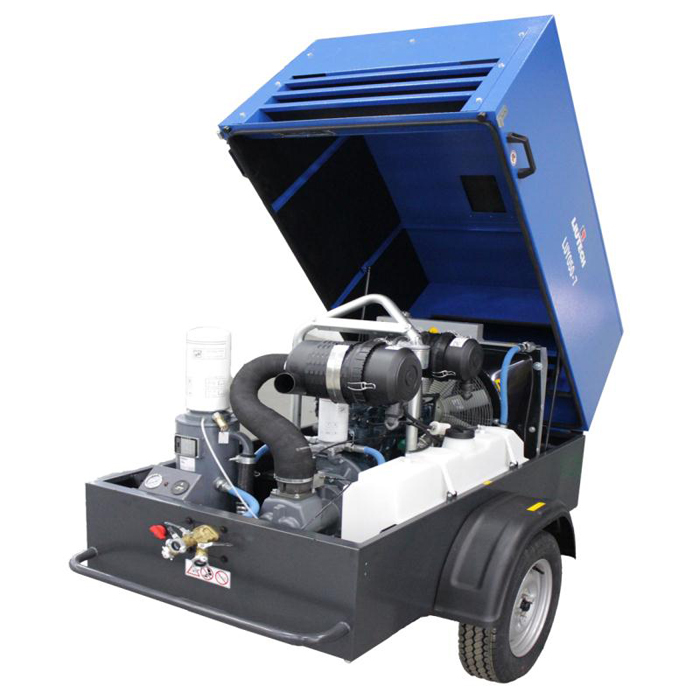

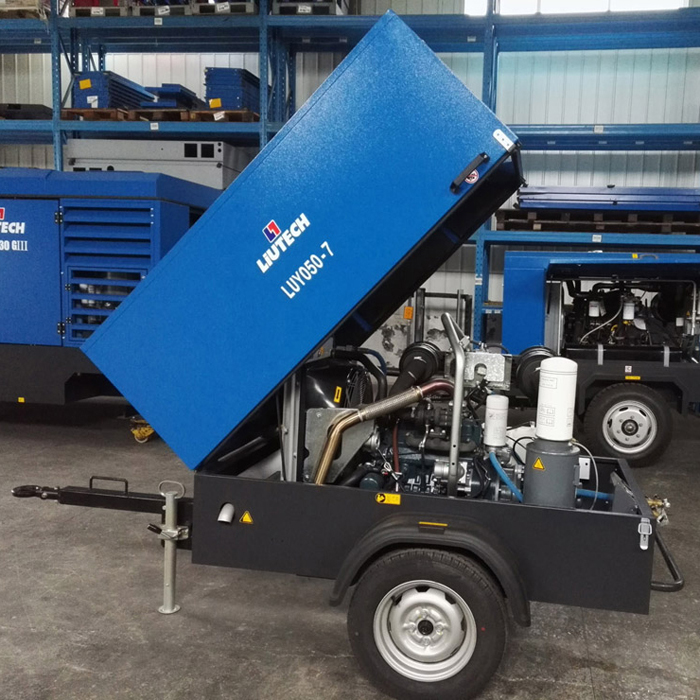

179cfm 7Bar Liutech Portable compressor

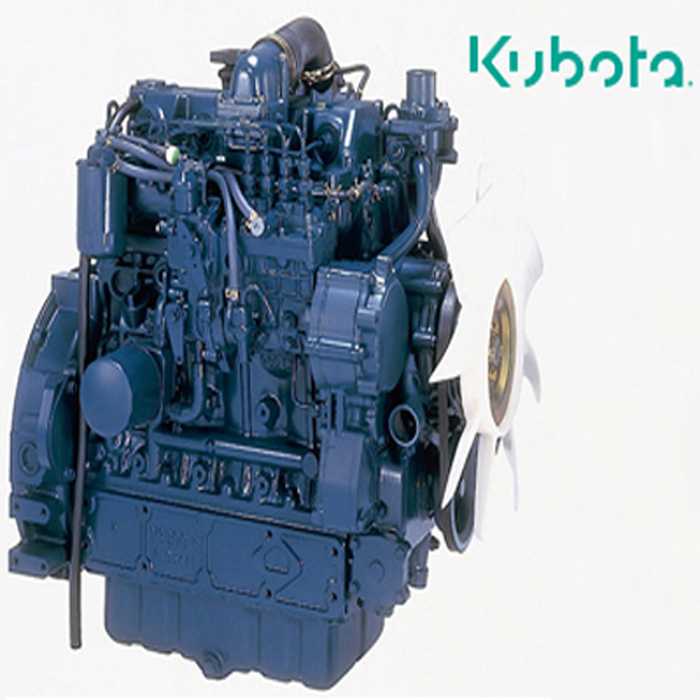

Kubota engine,import from Japan

Low fuel consumption,about 6L/Hour

Low noise,it is only 70dB(A)

Option for cold start(-20℃)

Excellent quality,high reliable quality!

Compressor model	LUY050-7
Free Air Delivery @ Normal Working Pressure	(5 m³/min ) 179cfm
Normal Working Pressure	7 bar 102psi
Minimum / Maximum Unloading Pressure	4 / 8.5 bar
Compression Stages	1
Compressor cooling system	Compressor oil
Compressor Oil Capacity	7.7 L
Approximate Air Outlet Temperature	90°C (Standard)
Typical oil content of compressed air	<5 mg/m³
Fuel Tank Capacity	67L
Outlet Valve Configuration	3 x 3/4” G
Nominal working condition	Inlet pressure 1bar,Humidity0%,Temp20 °C
Sound Pressure Level (ISO2125)	70 dB(A) +/- 3
Maximum Ambient Temperature at sea level	50 °C
Maximum Altitude	5000 m
Minimum Starting Temperature	-10 °C / -20 °C (with assist)
Diesel Engine Data	Kubota
Horsepower Developed @ Rated Speed	32.5kW
Engine cooling system	Water
Cylinders	4
Engine Oil Capacity	5.5 Liter
Unloaded Speed / Maximum Loaded Speed	1850 / 3000RPM
Fuel Consumption @ 0% Load / 100% Load	3.6 / 7kg/h
Dimensions	Standard Towing Speed20 km/h
Length	2950 mm ( within towbar )
Width	1350 mm
Height	1400 mm
Weight ( filled with oil & coolant , Initial fuel )	750 kg
