Description

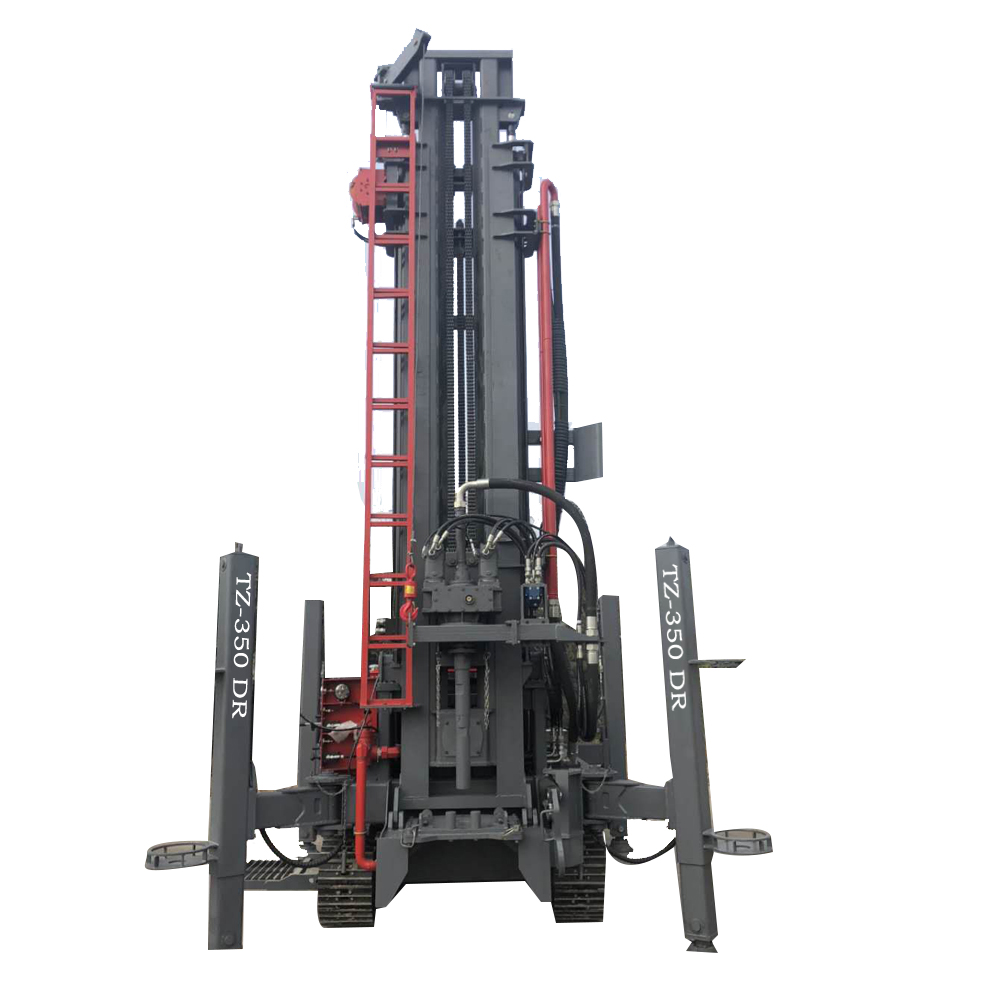

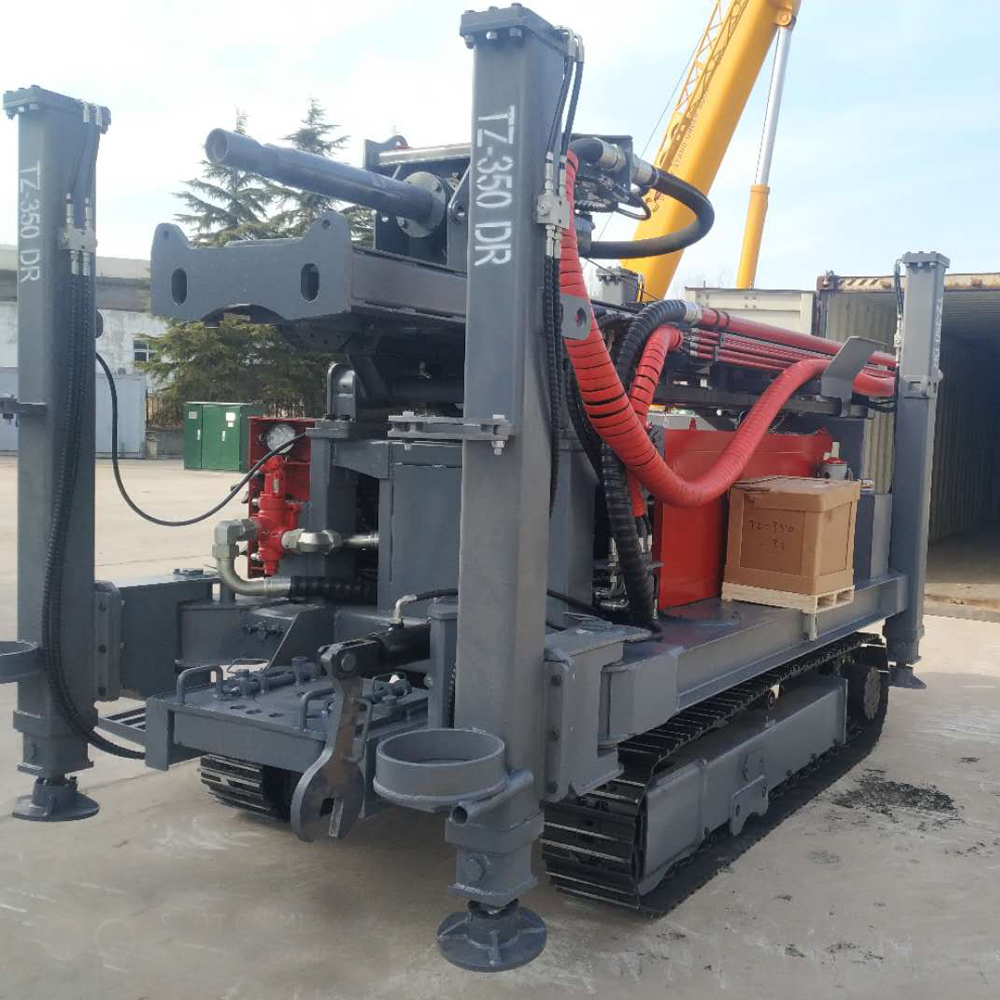

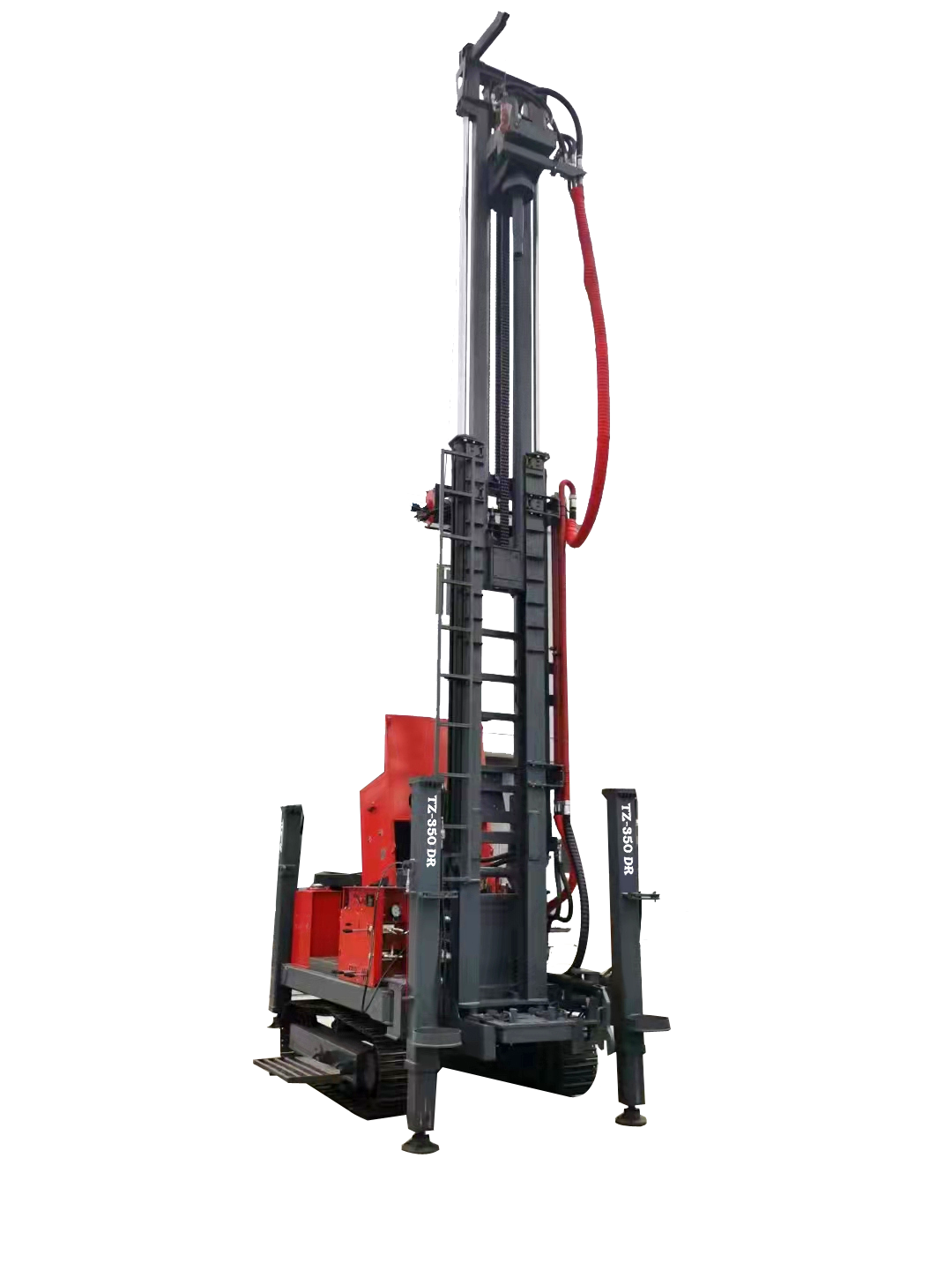

TZ series water well drilling rig is multi-functional hydraulic water well drilling rig,it is Suitable for drilling wells in harsh mountainous areas and complex rock formations.

All the movements of rig are completed by hydraulic devices, and the intensity of labor is low.

The design size of rig is reasonable, and the distance between the front and rear legs is large.it can loading /unloading from the truck by itself without cranes.

All operating handles are integrated into the console, the operating interface is simple and clear, You can monitor operation of rig at any time, electrical integrated harness,high waterproof level. Sealing design for legs, stopping sand or mud into the legs.the chain wheel is inlaid with cylindrical roller bearing and framework oil seal to reduce the maintenance cost.engine air intake system is filtered 2-3 times to protect engine in good condition. Power head propulsion and lifting track use special and abrasion resistant angle steel structure. it can be adjusted in time according to abrasion. During drilling, the carriage and power head shake lightly, and the propulsion resistance is small.

The components of rig is well-know brand in the world to make sure reliable quality and durable.

200m to 350m water well drilling rig specification:

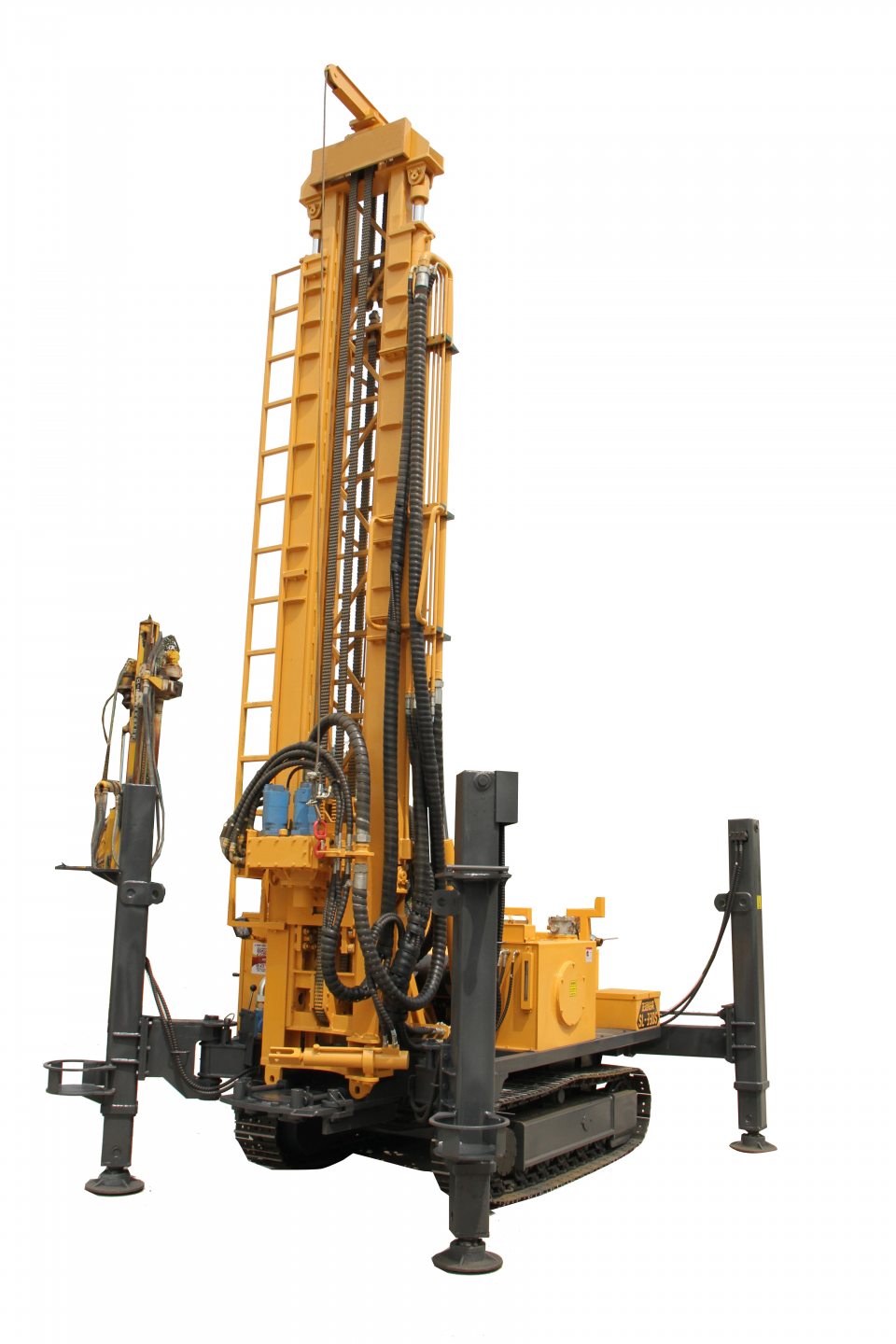

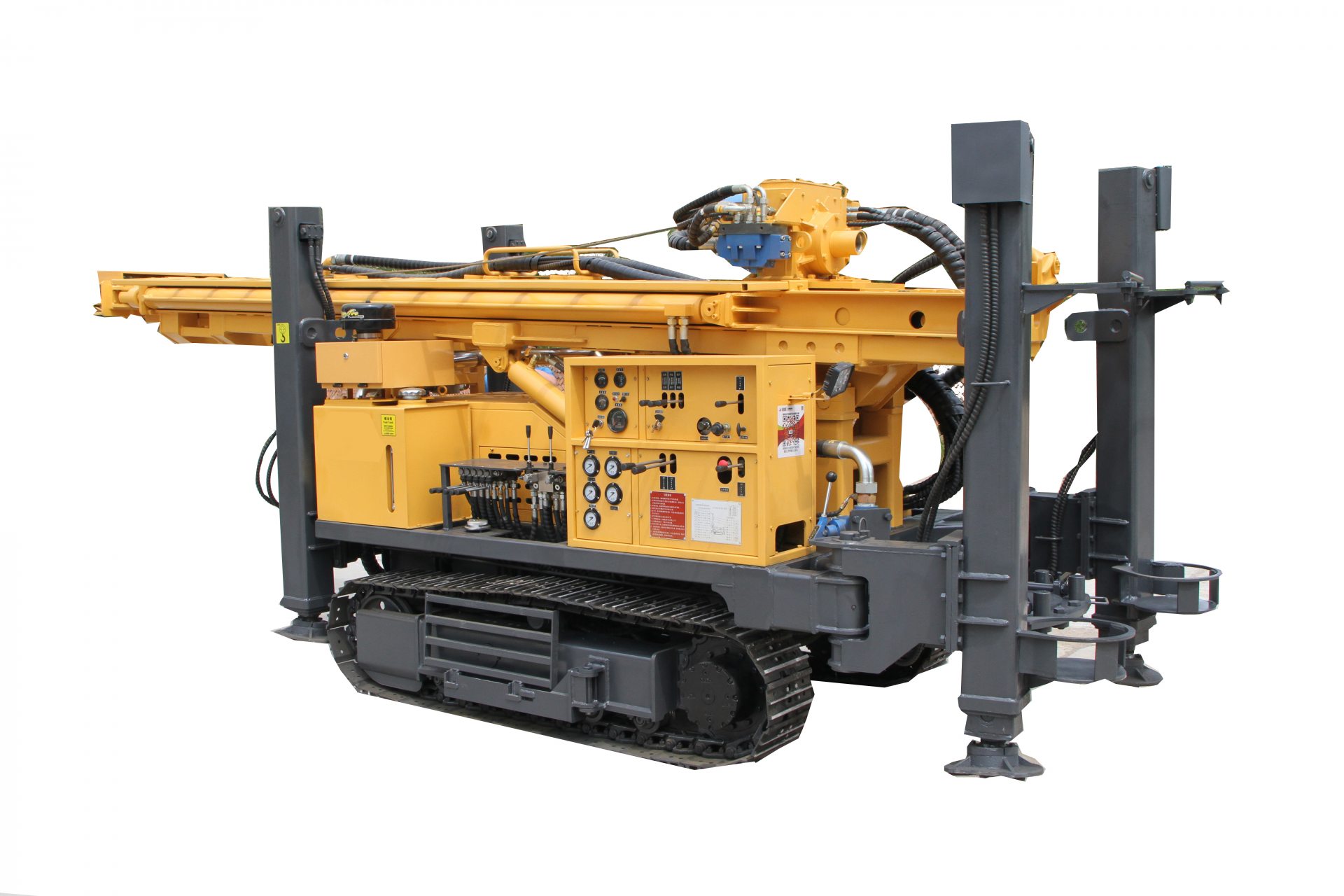

400m to 600m water well drilling rig specification:
