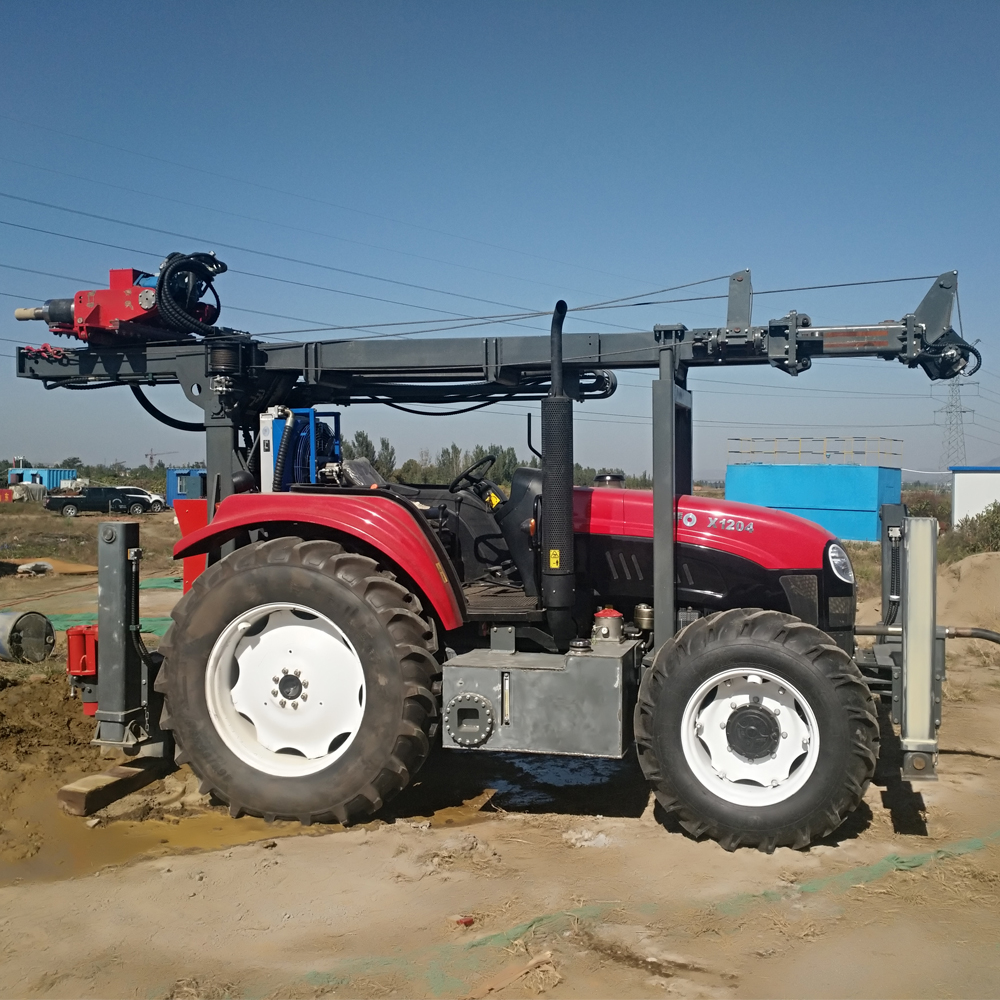

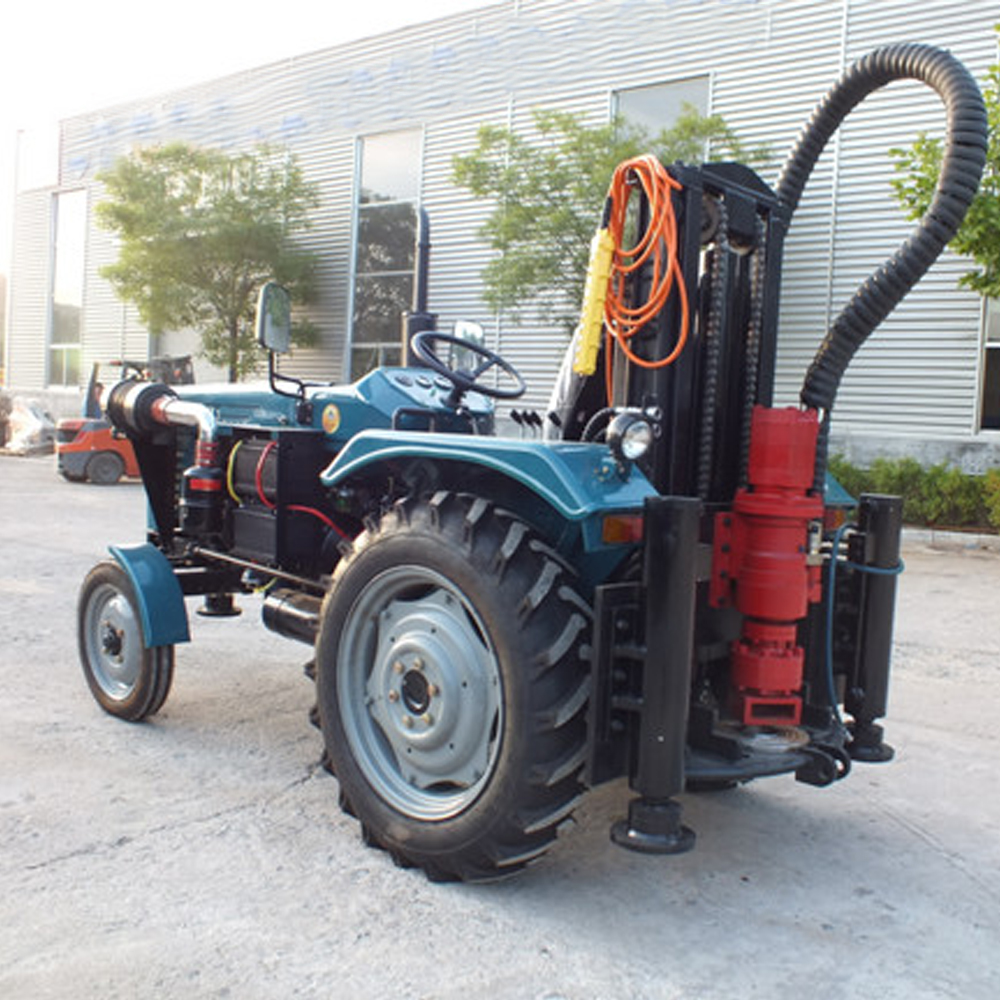

Tractor Water Well Drilling rig
1. Unique design,Reliable quality Small Dimension
light weight and Simple structure
2. Easy operation,Can one man operation
3. Easy maintenance and versatility
4. Small investment, big return
Description
Our tractor water well drilling rigs adopts full hydraulic control system and the drilling tools are driven to rotate by the power head,they own reasonable design,stable structure and good mobility,fit for the operation in various poor road conditions.they are widely used in various projects such as well-drilling,ground geothermal energy,engineering survey,foundation treatment,they are good for mud drilling and air drilling,and can meet the needs of drilling in different formations,six national patents have been filed
|
Model |
TZ-150DR |
TZ-200DR |
TZ-300DR |
|
Max drilling depth |
150m | 200m | 350m |
| Drilling diameter | 90-235mm | 90-235mm | 105-350mm |
| Drill rod diameter | 76mm | 76mm or 89mm | 89/102mm |
|
Drill rod length |
1.5m | 1.5m | 3m |
| Sliding framework stroke | 1800/2000mm | 1800/2000mm | 4500mm |
| Lifting force | 39Kn | 58Kn | 16T |
| Rotation speed | 30-90 r/min | 50-110 r/min | 40-400 r/min |
| Rotation torque | 2700Nm | 4500Nm | 7500-5200Nm |
| Drilling speed | 10-35m/h | 10-35m/h | 10-35m/h |
| Working speed | 35km/h | 35km/h | 40km/h |
| Dimension | 3000x1350x1950mm | 3350x1450x2060mm | 6500x2150x2700mm |
| Drilling method |
Air drilling or Mud pump drilling |
||
| Total weight | 2600Kgs | 2800Kgs | 11T |
