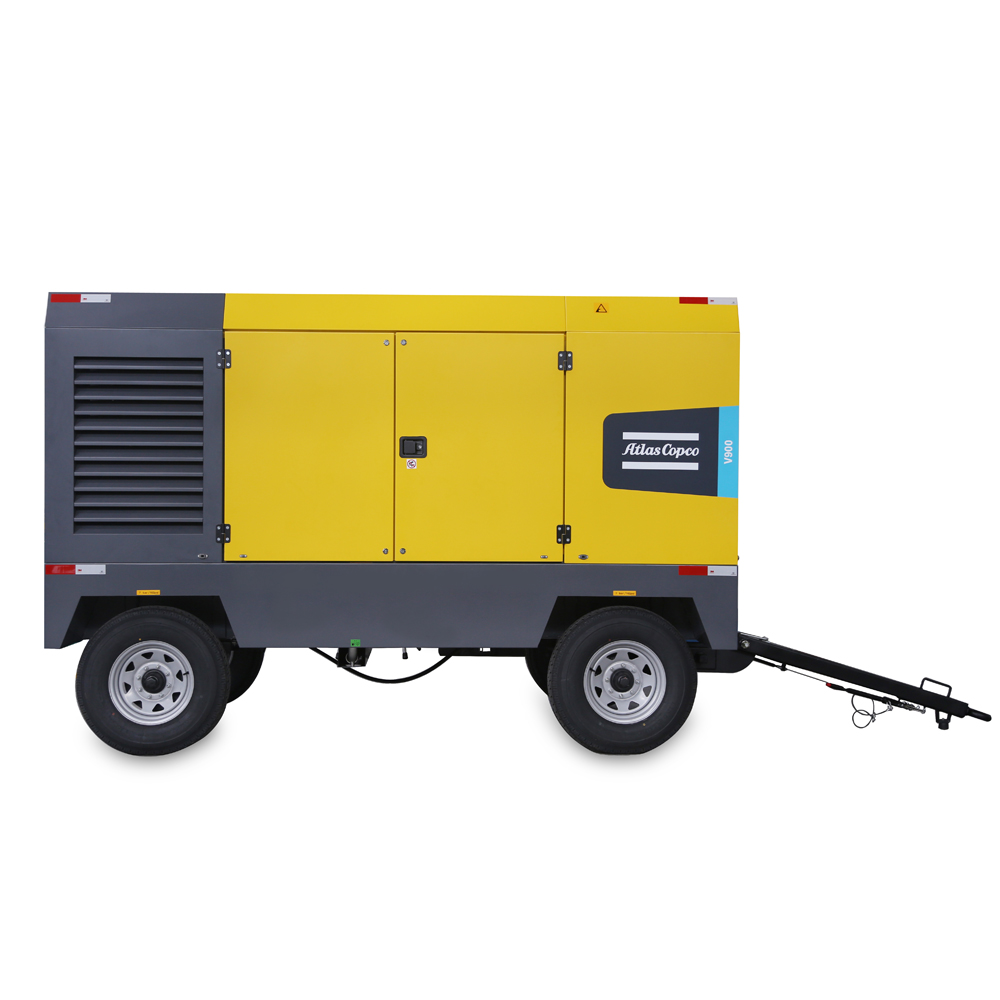

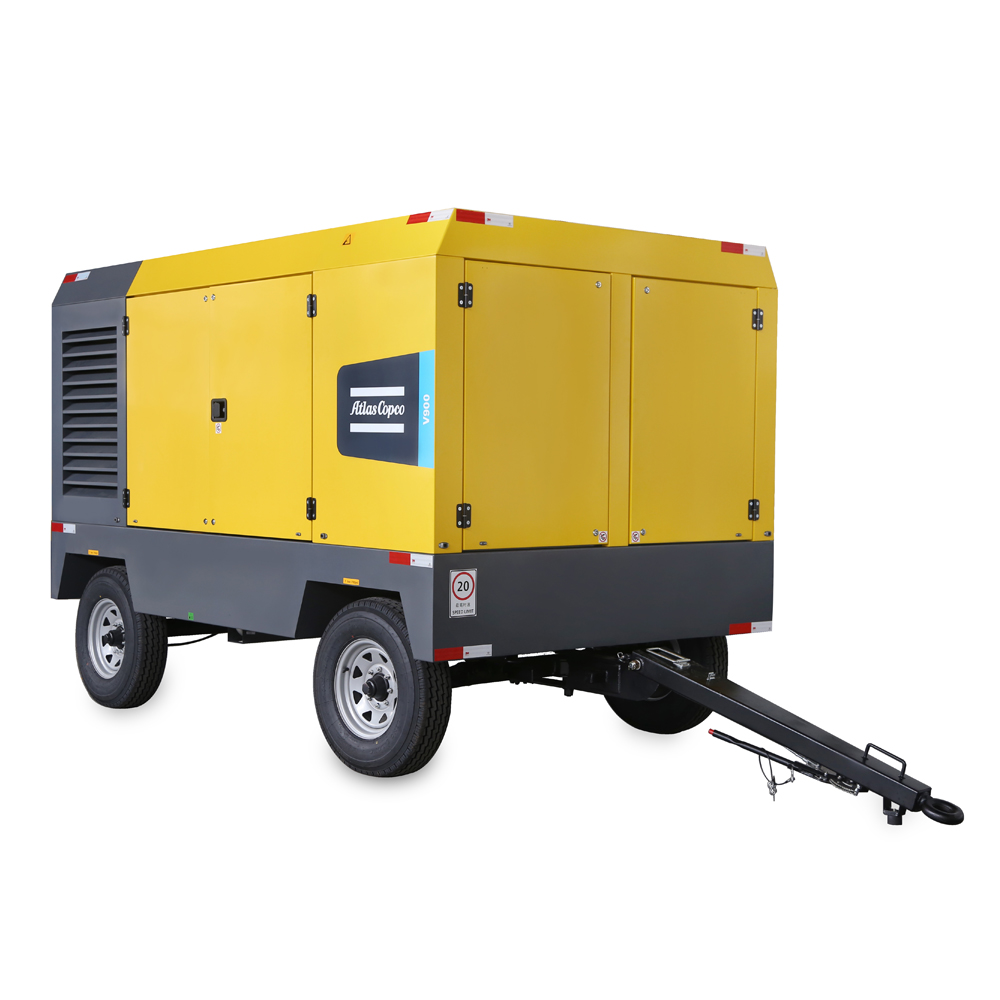

814cfm 25Bar Atlas Copco Compressor V900
Atlas Copco is a leading manufacturer of compressed air machines in the world
Advanced technology
Reliable quality
Good after service
Description
| Compressor Data | V900 |
| Free Air Delivery @ Normal Working Pressure | 907cfm to 814cfm |
| Normal Working Pressure | 16–25Bar |
| Air Receiver Capacity | 89L |
| Outlet Valve Configuration | 1 x 2” G, 1x 3/4” G |
| Nominal working condition | Inlet pressure 1bar,Humidity0%,Temp20 °C |
| Sound Pressure Level (ISO2125) | 80dB(A) |
| Maximum Ambient Temperature at sea level | 50 °C |
| Diesel Engine Data | Cummins QSL8.9-C360C30 |
| Horsepower Developed @ Rated Speed | 264 kW |
| Cylinders | 6 |
| Fuel Tank Capacity | 420L |
| Engine Coolant Capacity | 58L |
| Engine Oil Capacity | 21L |
| Maximum Loaded Speed | 1900 / 1700RPM |
| Dimensions | Standard Towing Speed 20 km/h |
| Length | 4100mm ( within towbar ) |
| Width | 2100mm |
| Height | 2500 mm |
| Weight ( filled with oil & coolant , Initial fuel ) | 4550 kg |
