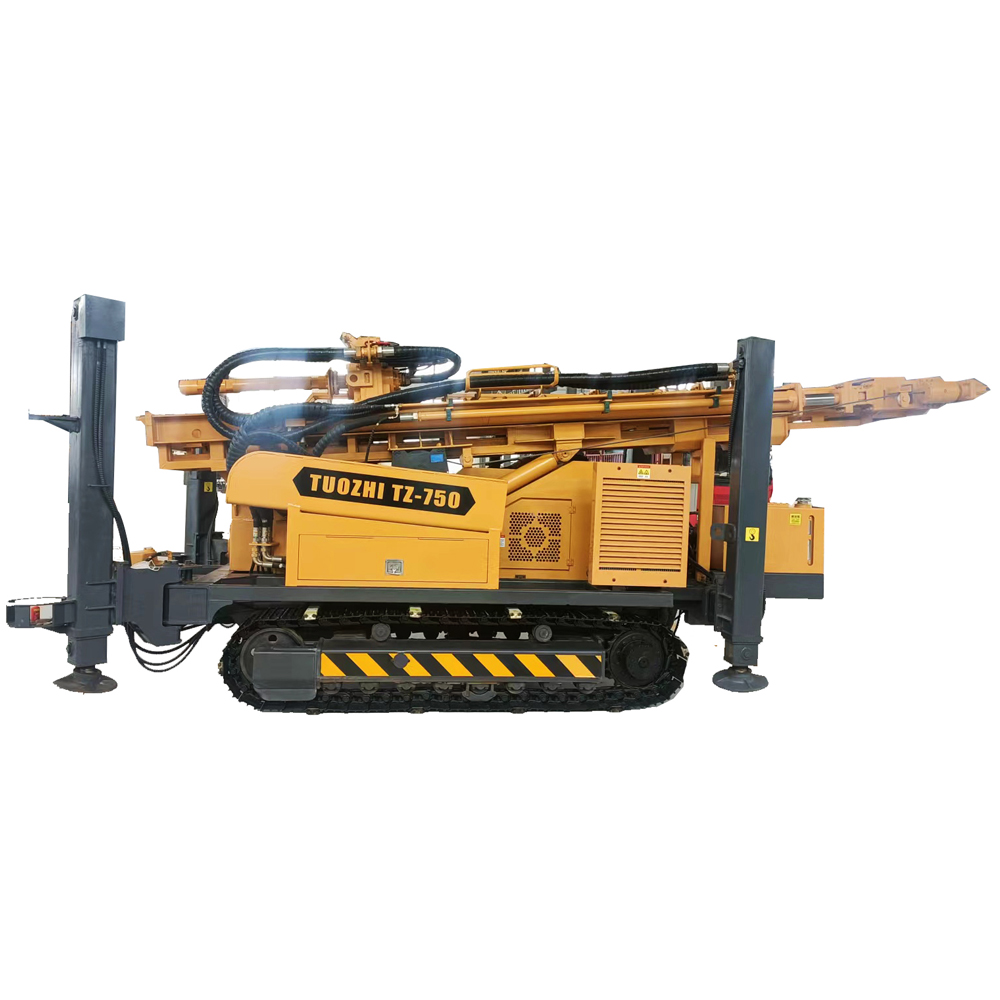

700m-2000m Crawler Water Well Drilling Rig
1.High efficiency,it can drilling about 200meters per day
2.Durable and Reliable quality
3.Crawler type,Adapt to all kinds of terrain
4.Best technology support and after sale service
Description
Our company water well drill rig is a top drive high efficiency and multi-purpose hydraulic rig,featured with advanced technology,convenient using,high efficiency ,reliable and durable,been using widely in water well drilling,inspecting,relief wells,and other bore hole drilling,also good with ground source thermal pump conditioning hole drilling of city construction,coalbed methane,gas and oil exploration.this rig is drilling used compressed air power,drilling with casing,drilling mud and has high drilling speed in the rocks of general hardness f=6-20 This rig is the mast motion like lifting and adjusting,rods loading/unloading,rotary and forwarding,and the jacks and winches all controlled by the hydraulic system.easy to manipulate and reduced the labor intensity and prepareing time,improved the working efficiency and quality.the chassis of the rig could be pedrail and truck mounted.
| Model | TZ-700 | TZ-750 | TZ-1000 | TZ-1200 | TZ-1500 | TZ-2000 |
| Max drilling depth | 700m | 750m | 1000m | 1200m | 1500m | 2000m |
| Drilling diameter | 105-450mm | 105-450mm | 105-800mm | 105-900mm | 105-900mm | 105-1000mm |
| Air pressure | 1.6-6Mpa | 1.6-6Mpa | 1.6-8Mpa | 1.65-8Mpa | 1.65-8Mpa | 1.65-8Mpa |
| Air consumption | 16-75m3/min | 16-75m3/min | 16-96m3/min | 16-120m3/min | 16-120m3/min | 16-120m3/min |
| Drill pipe length | 6m | 6m | 6m | 6m | 6m | 6m |
| Drilling pipe diameter | 102mm | 102mm | 114mm | 127mm | 127mm | 127mm |
| Axial pressure | 6T | 6T | 11T | 10T | 13T | 19T |
| Lifting force | 40T | 40T | 51T | 60T | 80T | 100T |
| Fast lifting speed | 31m/min | 31m/min | 29m/min | 29m/min | 24m/min | 26m/min |
| Fast feeding speed | 65m/min | 65m/min | 42m/min | 51m/min | 44m/min | 43m/min |
| Max rotary torque | 12000/6000 | 12600/6300 | 20000/10000 Nm | 24000/12000 Nm | 31000/15500 Nm | 36000 Nm |
| Max rotary speed | 95/190 R/min | 95/190 R/min | 70/140 R/min | 85/170 R/min | 80/160 R/min | 52/104 R/min |
| Big winch lifting force | 4T | 4T | 4T | 4T | ||
| Little winch lifting force | 2.5T | 2.5T | 1.5T | 1.5T | 1.5T | 1.5T |
| Drilling efficiency | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h |
| Weight | 14T | 14T | 17.5T | 23T | 28T | 28T |
| Dimension Of Rig | 6.3×2.25×2.65m | 6.3×2.25×2.65m | 7×2.25×2.65m | 7×2.25x3m | 11.5×2.6×3.5m | 12×2.6×3.6m |
| Drilling method | To drive hydraulic rotary and pushing hammer or mud drilling | |||||
